  • Mystrid Flex — MY F LX L09 DW TP WH BTM END 67

Mystrid Flex / MY F LX L09 DW TP WH BTM END 67

21052342

▼ Produktblad

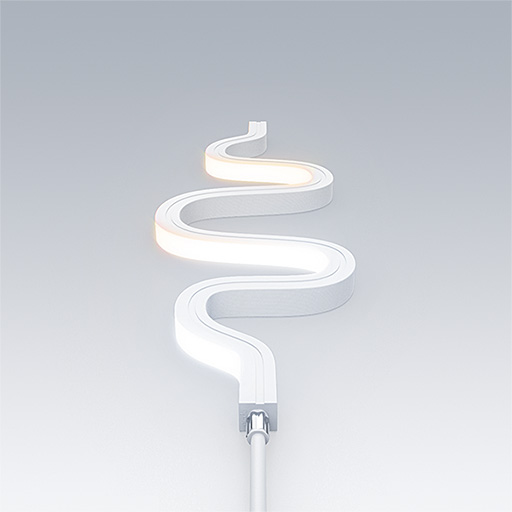

Mystrid Flex a linear IP67 luminaire with top bend optic. Supply cable entry: bottom. Cable exit: end of run. Class III electrical, Impact strength: IK07. Body: opal silicone in white. ambient temperature: -20°C to +45°C. The fixture is powered by a remote driver (to be ordered separately). Complete with dynamic white LED.

Luminaire input power: 13.5 W
Luminaire luminous flux: 922 lm
Luminaire efficacy: 68 lm/W
Weight: 0.48 kg

Mode selection
  • Lampeposisjon:STD - standard
  • Lyskilde:LED
  • Lysutbytte fra armatur*:922 lm
  • Armatureffektivitet*:68 lm/W
  • Ra min.:80
  • Chromaticity tolerance (initial MacAdam):2
  • Merkelevetid (B10)*:L70 54000 h at 25 °C
  • Luminaire input power*:13,5 W
  • LED
  • CE
  • NoIsol
  • IK07
  • IP67
  • SC3

▼ Lysfordeling

Fotometrisk konfigurasjon
