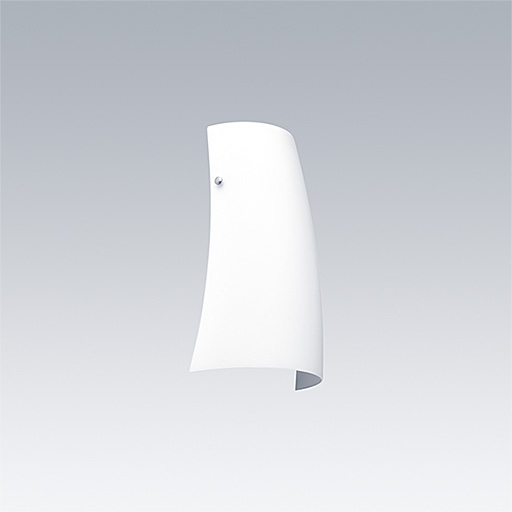

Lyric Deco / LYRIC DECO LED1550-830 HFI-X MWA-L OP



En stilig, avrundet og rørformet veggmontert LED-armatur med Forkoblingsutstyr med DALI-dimming. Klasse I elektrisk, IP20. Avskjerming: opal glass. Med 3000K LED.

Mål: 200 x 95 x 300 mm
Luminaire input power: 12,4 W
Lysutbytte fra armatur: 1550 lm
Armatureffektivitet: 125 lm/W
Vekt: 1,4 kg

Mode selection
  • Lampeposisjon:STD - standard
  • Lyskilde:LED
  • Lysutbytte fra armatur*:1550 lm
  • Armatureffektivitet*:125 lm/W
  • Ra min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000h at 25°C
  • Forkobling:1x HFI*
  • Luminaire input power*:12,4 W
  • Dimming:DA2
  • Maintenance category CIE 97:B - Åpen toppreflektor
  • LED
  • CE
  • GLedReP
  • IP20
  • LLedNr
  • SC1


Fotometrisk konfigurasjon
