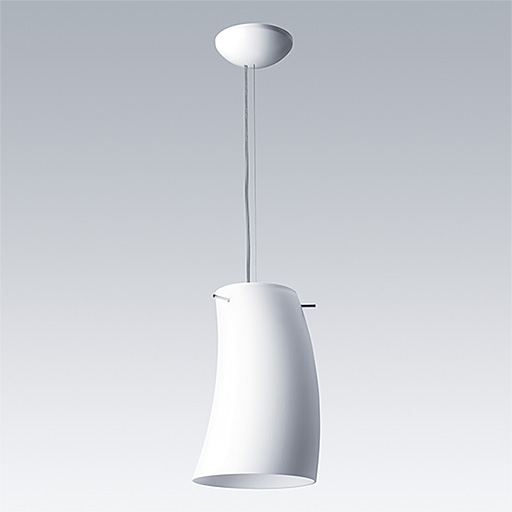

Lyric Deco / LYRIC DECO LED1050-830 HF MSU OP



En stilig, avrundet og rørformet nedhengt LED-armatur med uten dimming. Klasse I elektrisk, IP20. Avskjerming: opal glass. Med 3000K LED.

Mål: Ø200 x 300 mm
Luminaire input power: 18 W
Lysutbytte fra armatur: 1050 lm
Armatureffektivitet: 58 lm/W
Vekt: 2,2 kg

Mode selection
  • Lampeposisjon:STD - standard
  • Lyskilde:LED
  • Lysutbytte fra armatur*:1050 lm
  • Armatureffektivitet*:58 lm/W
  • Ra min.:80
  • Correlated colour temperature*:3000 Kelvin
  • Chromaticity tolerance (initial MacAdam):3
  • Rated median useful life*:L70 50000h at 25°C
  • Forkobling:1x HF_
  • Luminaire input power*:18 W
  • Dimming:FO
  • Maintenance category CIE 97:B - Åpen toppreflektor
  • LED
  • CE
  • GLedReP
  • IP20
  • LLedNr
  • SC1


Fotometrisk konfigurasjon


Use CalcExpress to quickly carry out quick online calculations of required indoor luminaire numbers for rectangular rooms. Enter the calculation parameters for your solution such as room dimensions, mounting height, height of the useful plane and required level of illuminance, and the site will instantly suggest a solution according to the light output ratio method.

Trinn 1: Tekniske data
Trinn 2: Rom data
Step 3: Result
