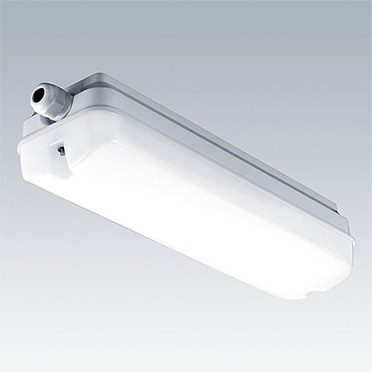

Escort
Robust og solid IP65-armatur for utenpåliggende montering
- Holdbar støpt konstruksjon som passer til både innendørs og utendørs bruk
- For bruk i industri- eller i offentlige omgivelser
- Vandalsikrede materialer og innstillinger
- Varianter med batteri-backup er også tilgjengelige (se Voyager Escort-serien)
- Trådløs kommunikasjon mellom armaturer takket være basicDIM-moduler
- Kontrolleres via en app som er bygd på Bluetooth®-meshteknologi
Utførelse
Avskjerming: opal polykarbonat med hærverkbeskyttede skruer
Forkoblingsutstyr: konvensjonell (nettstrømsvarianter)
Installasjon og montering
Direct wall or ceiling mounting. Drill points on rear for ceiling/wall box/BESA mounting. Rear cable entry hole and mounting points pre-drilled and sealed with rubber grommets. Ø20mm cable entry at either end and 4 fixing points. 3 way terminal block, 2x2.5mm² capacity. Cable gland and blanking grommets (2) supplied.
It is the responsibility of the installer to use high quality cable glands rated at IP66 or greater, installed in accordance with their installation instructions. Failure to use high quality accessories risks failure of the luminaire IP rating.
- New Product
New Product
LumExpress Product
eControl Product
▼ Escort
Beskrivelse | Systemeffekt (W) | Armaturlumen (lm) | Type | Vegt (kg) | SAP Code | ||||
---|---|---|---|---|---|---|---|---|---|
ESCORT 1000-840 HF | 8 | 1000 | LED | 1.00 | 96636107 | ||||
ESCORT 800-840 HF | 7 | 800 | LED | 1.00 | 96636106 | ||||
ESCORT I-SLCT 800/1K-840 HF | 7 | 800 | LED | 1.00 | 96636082 |
