FleXity

  • FleXity
  • FleXity
  • FleXity
  • FleXity

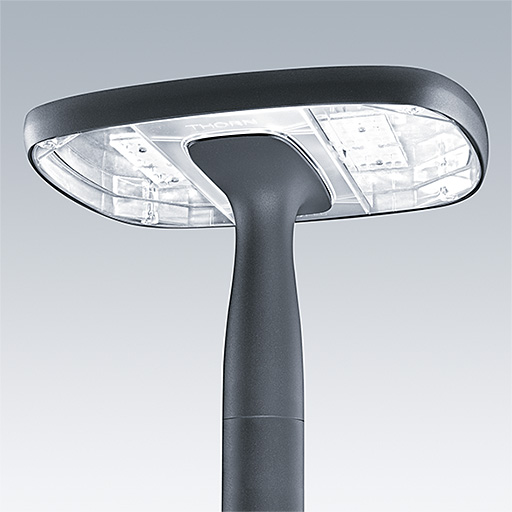

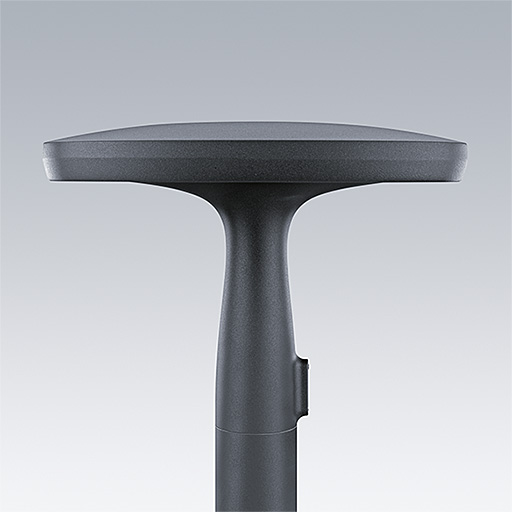

Liten mastetopparmatur for komfort og ytelse

  • Available with opal diffusor for comfortable lighting or clear enclosure for best performances
  • Respectful of its environment with zero upward lighting with clear enclosure
  • Choice of dimming options and controls to reduce energy consumption: DALI2, Bi-power
  • Zd4i certified on request
  • Ease of installation thanks to very low weight and pre-wiring

Utførelse

Toppskjerm og sokkel presstøpt aluminium (AS9U3, LM24-ekvivalent, EN AC-47100, standard korrosjonsklasse C3).
Avskjerming: klar UV-stabilisert polykarbonat
Skruer: rustfritt stål
Finish: teksturert antrasittgrått (likner RAL7043), Utvalg av RAL-farger via konfiguratoren.

Installasjon og montering

Suitable for mounting on column Ø76mm or Ø60mm, spigot internal length: 75mm. Recommended height: 3/6m. Equipped with cable gland or pre-wired with HO7RNF cable. Spare driver available. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

New Product
LumExpress Product
eControl Product

FleXity, avskjermingsoptikk, 250 mA

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
FLEX 24L25-730 OP CL2 W5 T60 ANT2021203525015LED4.5096270771
FLEX 24L25-730 OP CL2 W5 T60 GY202120LED4.5096642801
FLEX 24L25-740 OP CL2 W5 T60 ANT2023253525016LED4.5096270772
FLEX 24L25-740 OP CL2 W5 T60 GY202325LED4.5096642802

FleXity, bredstrålende veikomfortoptikk, symmetrisk, 500 mA, bi-power

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
FLEX 24L50-730 WSC-S BP CL2 W5 T60 ANT4042243525019LED4.5096270797
FLEX 24L50-730 WSC-S BP CL2 W5 T60 GY404224LED4.5096642825
FLEX 24L50-740 WSC-S BP CL2 W5 T60 ANT4046323525020LED4.5096270798
FLEX 24L50-740 WSC-S BP CL2 W5 T60 GY404632LED4.5096642826

FleXity, bredstrålende veikomfortoptikk, symmetrisk, 1050 mA, bi-power

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
FLEX 24L105-730 WSC-S BP CL2 W5 T60 ANT847815LED4.5096271107
FLEX 24L105-730 WSC-S BP CL2 W5 T60 GY847815LED4.5096642841
FLEX 24L105-740 WSC-S BP CL2 W5 T60 ANT848571LED4.5096271108
FLEX 24L105-740 WSC-S BP CL2 W5 T60 GY848571LED4.5096642842

FleXity, bredstrålende veikomfortoptikk, asymmetrisk, 500 mA, bi-power

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
FLEX 24L50-730 WSC BP CL2 W5 T60 ANT4042243525023LED4.5096270811
FLEX 24L50-730 WSC BP CL2 W5 T60 GY404224LED4.5096642833
FLEX 24L50-740 WSC BP CL2 W5 T60 ANT4046323525024LED4.5096270812
FLEX 24L50-740 WSC BP CL2 W5 T60 GY404632LED4.5096642834

FleXity, bredstrålende veikomfortoptikk, asymmetrisk, 1050 mA, bi-power

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   TypeVegt (kg)SAP Code
FLEX 24L105-730 WSC BP CL2 W5 T60 ANT847815LED4.5096271123
FLEX 24L105-730 WSC BP CL2 W5 T60 GY847815LED4.5096642857
FLEX 24L105-740 WSC BP CL2 W5 T60 ANT848571LED4.5096271124
FLEX 24L105-740 WSC BP CL2 W5 T60 GY848571LED4.5096642858
