Avenue D2

  • Avenue D2
  • Avenue D2
  • Avenue D2
  • Avenue D2
  • Avenue D2
  • Avenue D2

En elegant og effektiv armatur med en dråpeaktig avskjerming som gir en unik og komfortabel belysning

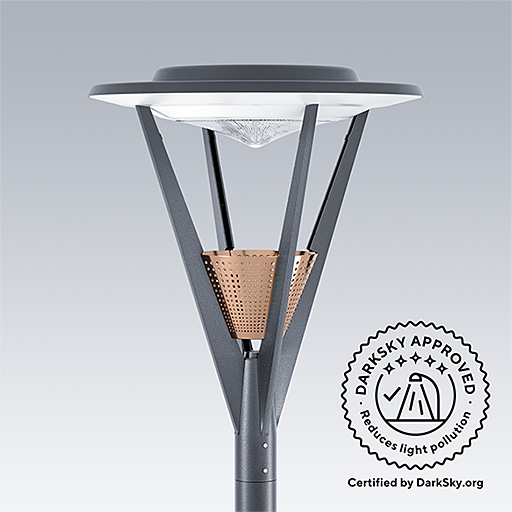

  • IDA Dark Sky Approved
  • *IDA-armaturens godkjenningsstempel omfatter kun <= 3000 K og klar avskjerming. Armaturer skal monteres i henhold til fotometrisk måling.
  • Respectful of the environment with warm color temperature and reduced upward lighting <1% with dedicated optics (RSC, CST)
  • Smart lantern with Zhaga interface. Zd4i certified
  • Dekorativ lampeskjerm i kobber eller stål for å lage en egen stil

Utførelse

Base and arms: die cast aluminium (EN AC-46000, standard corrosion class C3).
Canopy: spun aluminium.
Finish: powder coated anthracite textured grey 900 (close to RAL7043). Via myProduct: Texturized light grey (GY), Black (BK) and 48 other RAL possibilities
Lampshiled: metallised PC with copper or stainless steel, special varnish to prevent ageing effect and preserve the initial gloss appearance.
Diffuser: UV stabilised PC frosted or clear polycarbonate
Reflector and mirrors (street distribution): high reflective anodised aluminium.
Screw fixings: stainless steel.

Installasjon og montering

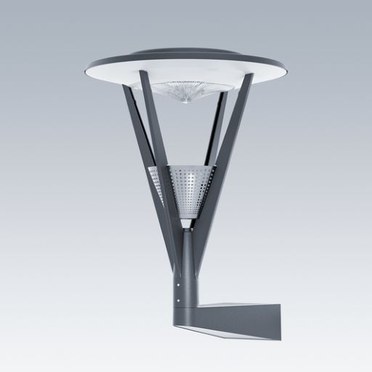

Post top mounting: on spigot/columns Ø60mm. Recommended height: 3/4m, coordinated Avenue wall bracket. Spigot: 60mm (length: 90mm). Access to gear and LED module (replaceable) via 4 screws from the canopy. Product supplied with connector below the lantern or pre-wired with HO5 RN-F cable. Delivered ready to install, complete with factory fitted integral gear, all supplied in one box.

  • New Product
New Product
LumExpress Product
eControl Product

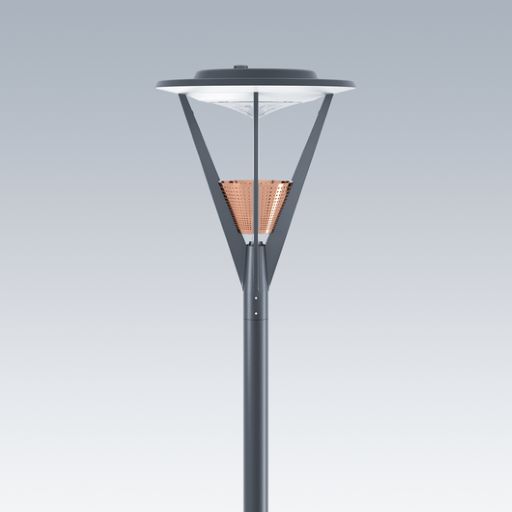

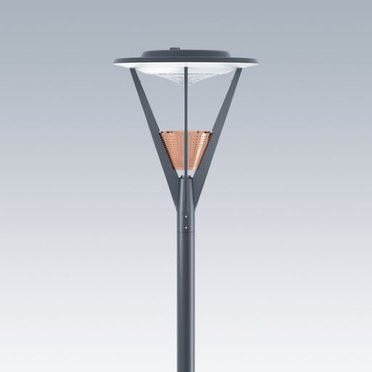

Avenue D2, symmetrisk optikk, avskjerming i kobber

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
AVD 18L35 730 RS BS 3550 CL2 CU N4M ANT212516LED9.0096261380
AVD 18L50 730 RS BS 3550 CL2 CU N4M ANT2934573524800LED9.0096261381
AVD 18L70 730 RS BS 3550 CL2 CU N4M ANT404627LED9.0096261382

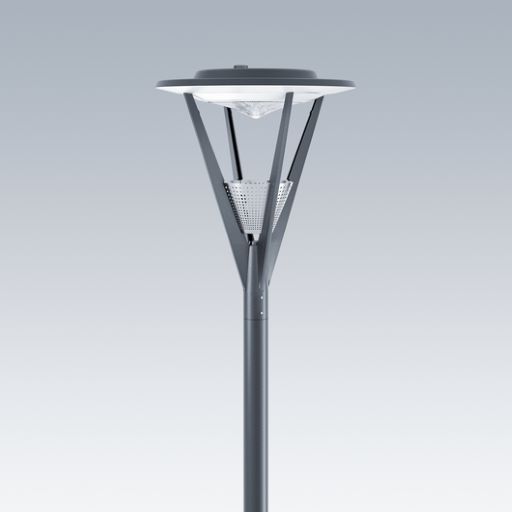

Avenue D2, symmetrisk optikk, avskjerming i rustfritt stål

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
AVD 18L35 730 RS BS 3550 CL2 ST N4M ANT212516LED9.0096261383
AVD 18L35-730 RS CL2 ST CON ANT212516LED8.8096679936
AVD 18L50 730 RS BS 3550 CL2 ST N4M ANT2934573524801LED9.0096261384
AVD 18L50-730 RS CL2 ST CON ANT293457LED8.8096679937
AVD 18L70 730 RS BS 3550 CL2 ST N4M ANT404627LED9.0096261385
AVD 18L70-730 RS CL2 ST CON ANT404627LED8.8096679938

Avenue D2, asymmetrisk (gate)optikk, avskjerming i kobber

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
AVD 18L35 730 WST BS 3550 CL2 CU N4M ANT212404LED9.0096261386
AVD 18L50 730 WST BS 3550 CL2 CU N4M ANT2933043524802LED9.0096261387
AVD 18L70 730 WST BS 3550 CL2 CU N4M ANT404422LED9.0096261388

Avenue D2, asymmetrisk (gate)optikk, avskjerming i rustfritt stål

BeskrivelseSystemeffekt (W)Armaturlumen (lm)   ElnummerTypeVegt (kg)SAP Code
AVD 18L35 730 WST BS 3550 CL2 ST N4M ANT212404LED9.0096261389
AVD 18L50 730 WST BS 3550 CL2 ST N4M ANT2933043524803LED9.0096261390
AVD 18L70 730 WST BS 3550 CL2 ST N4M ANT404422LED9.0096261391

Avenue D2 tilbehør

Beskrivelse   ElnummerVegt (kg)SAP Code
AVENUE D BRA MWA TX ANT35016084.0096005422
